Eaton - Cutler Hammer - Westinghouse - 5 Star Series - Breaker MCC Bucket - 100 A, 240 V, 36" Height, 3 P | AmpState

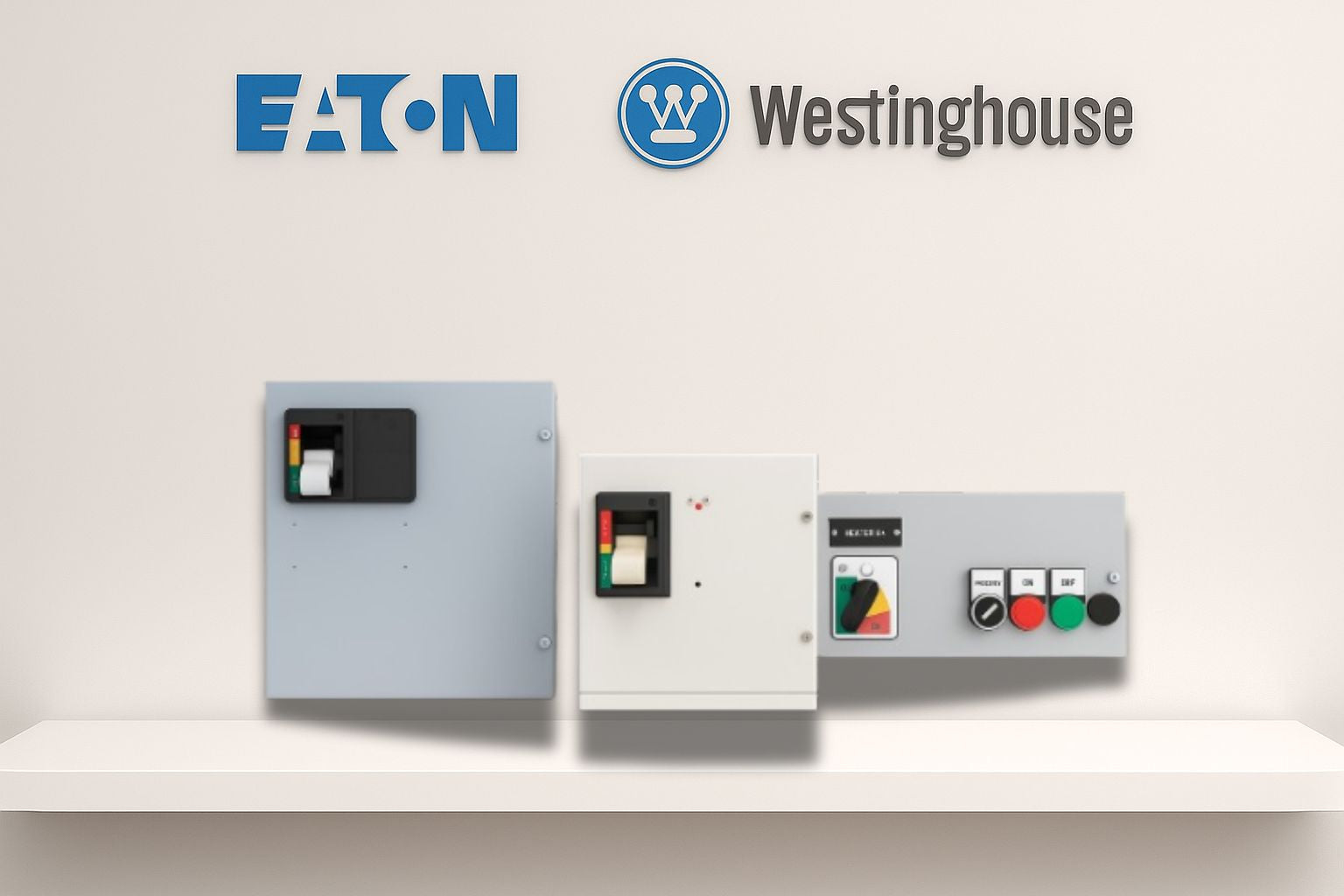

Engineered for demanding industrial motor control centers, the Eaton - Cutler Hammer - Westinghouse 5 Star Series Breaker MCC Bucket delivers reliable performance in a compact, plug‑in solution. With a 100 A, 240 V, 3‑Pole configuration housed in a 36" tall bucket, this unit is designed for stand‑out reliability in busy manufacturing floors, pumping stations, and material handling facilities.

Designed for 5 Star Series MCCs

Specifically built to integrate with Eaton, Cutler Hammer, Westinghouse 5 Star Series motor control centers, this MCC bucket offers a precise fit and consistent electrical characteristics that align with your existing infrastructure. It serves as a direct replacement or retrofit option, helping you modernize or maintain legacy installations without a full panel redesign.

Key specifications at a glance

• Brand: Eaton - Cutler Hammer - Westinghouse
• Series: 5 Star Series
• Configuration: Breaker MCC Bucket
• Rating: 100 A, 240 V, 3‑Pole
• Bucket Height: 36"
• Application: Motor control centers (MCCs) in industrial settings
• Replacement type: Direct replacement or retrofit for existing installations

Why this MCC bucket matters

In high‑demand environments, downtime is costly. This bucket is built to match the 5 Star Series footprint and electrical characteristics, enabling smooth, plug‑and‑play swaps that minimize panel downtime and commissioning time. By standardizing on a single bucket design across multiple MCCs, maintenance teams can stock fewer spare parts and execute faster, more predictable service Windows.

Ideal use cases

• Upgrading aging MCCs to a proven 5 Star Series bucket for improved reliability and part availability.
• Retrofitting legacy installations to the 100 A, 240 V, 3‑Pole configuration for consistent control of motors and drives.
• Replacing worn or failed MCC buckets without a full panel rebuild, preserving existing bus work and mounting references.
• Standardizing spare parts across multiple facilities to streamline maintenance and procurement.

What sets it apart

Unlike generic MCC components, this bucket is tied to the precise 5 Star Series architecture, ensuring alignment with your existing ducting, rails, and bus configurations. The 36" height matches common MCC standards, supporting predictable stacking and clearances. With direct replacement capability, you can preserve your control logic and wiring harness layouts while refreshing critical hardware.

Practical tips for deployment

• Verify existing bucket height, mounting rails, and bus connections to confirm a seamless retrofit.
• Coordinate with your maintenance team to schedule replacements during planned downtimes to minimize impact on production.
• Keep a small spare inventory of 5 Star Series MCC buckets to reduce lead times for future maintenance.
• Consult AmpState’s technical support for installation guidance or dimensional confirmation if needed.

AmpState provides dependable MCC buckets, retrofit solutions, and industrial motor control components with global delivery and technical support, ensuring you have a trusted partner for maintenance and upgrades of your motor control infrastructure.
