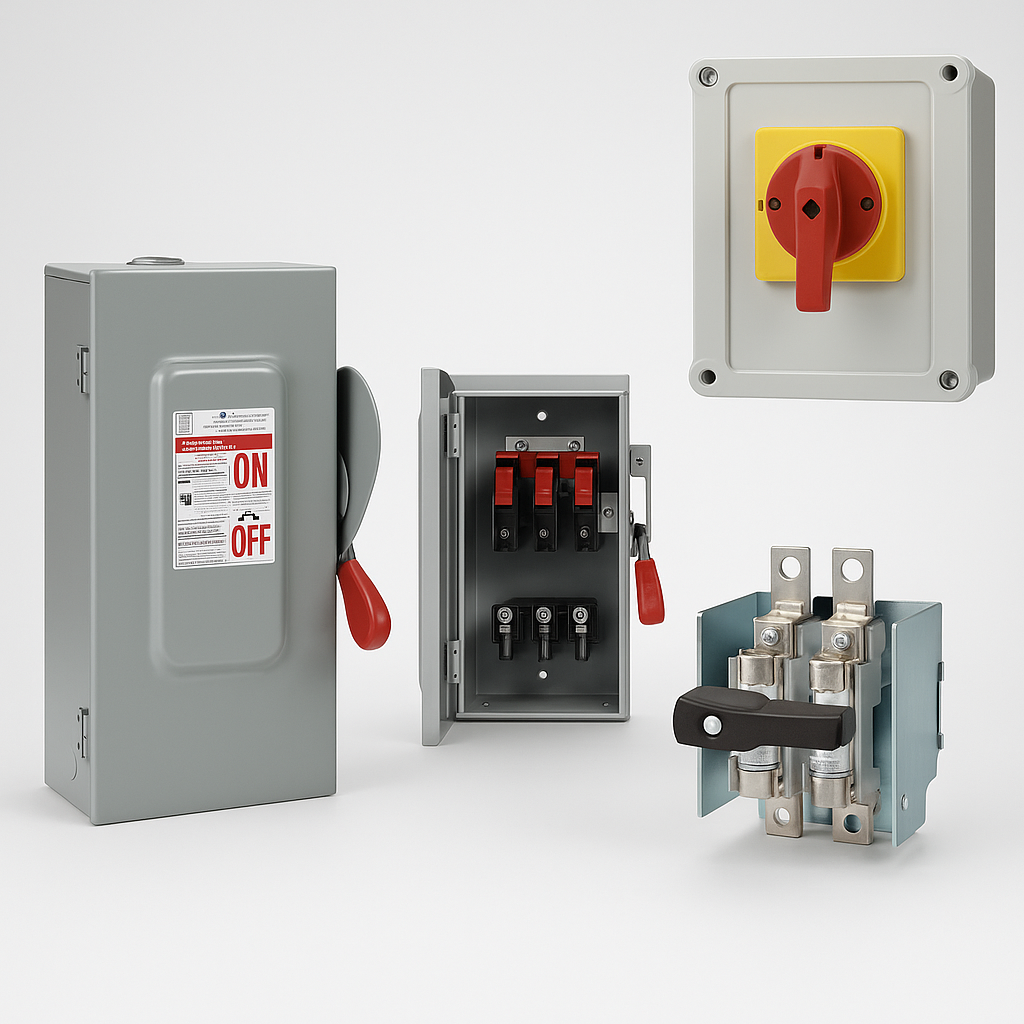

DC225E12-15-L520C-4 - 20A, 240V, Fusible, Switch

DC225E12-15-L520C-4 is a rugged, compact fusible switch that delivers dependable on/off isolation with built-in overcurrent protection for demanding industrial and commercial environments.

Built to simplify motor control and electrical safety, this 20A, 240V device combines switching and fusing in a single, field-maintainable unit. It’s the ideal choice for motor disconnects, panelboards, and branch circuits where a compact, reliable protective device is required.

Key advantages

• Integrated protection — fusible design interrupts fault current at the switch, helping safeguard wiring and connected equipment.
• Compact and maintainable — streamlined footprint reduces panel space, and fuse changes can be performed with minimal downtime.
• Reliable in tough environments — engineered for the rigors of industrial and commercial settings where consistent isolation matters.
• Versatile protection — suitable for motor disconnects, panelboards, and branch circuits up to 20A at 240V.

Ideal use cases

• Motor disconnects on conveyors, pumps, fans, and other equipment.
• Protection and isolation within control panels and motor control centers.
• Branch circuit protection where space is at a premium and reliable fusing is needed.

Technical snapshot

• Model: DC225E12-15-L520C-4
• Amperage: 20A
• Voltage: 240V
• Fusible: Yes (fusible switch)

Why this fused switch matters

Using a single, integrated fusible switch simplifies panel design by pairing disconnection and overcurrent protection in one device. That means fewer components to source, label, and wire, plus a clearer, safer path for maintenance and service. When a fault occurs, the fuse quickly interrupts current, while the switch provides immediate isolation for safe troubleshooting and repair—helping minimize downtime and keep equipment protected.

Installation and maintenance tips

• Match the fuse rating to your load requirements and follow standard wiring practices for 240V, 20A circuits.
• Power should be disconnected before replacing a fuse; refer to the equipment manual for fuse type and replacement procedure.
• Regularly inspect for signs of wear, corrosion, or overheating, and replace any damaged components promptly to maintain protection integrity.

For facilities and OEMs seeking a dependable, space-efficient protection and control solution, the DC225E12-15-L520C-4 Fusible Switch delivers clear isolation, robust protection, and straightforward maintenance—aligned with real-world motor control and panel protection needs.
