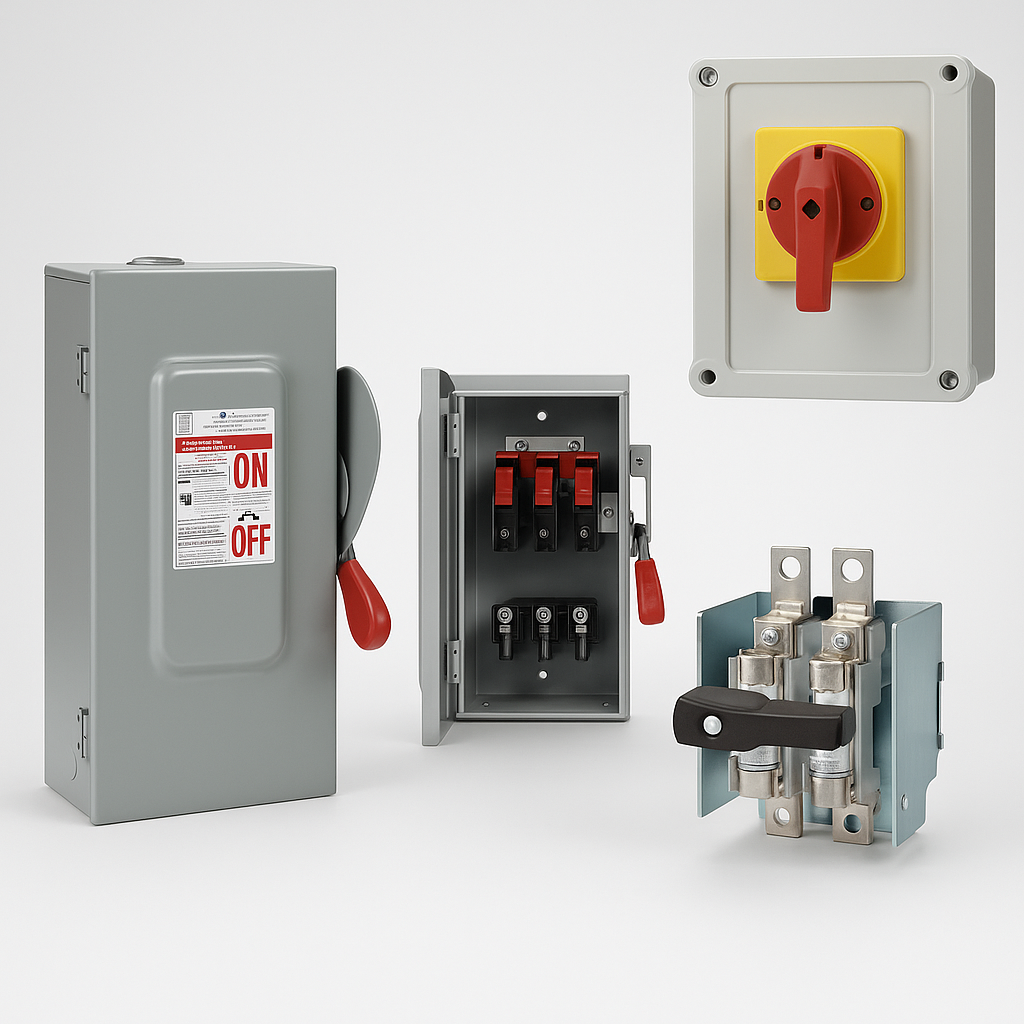

ABB 800D3PL - 720A, 690V, Switch

The ABB 800D3PL is a rugged, high-current fusible switch engineered for dependable on/off isolation and precise overcurrent protection in demanding industrial and commercial environments. With a 720 A rating and a 690 V operating voltage, this switch is purpose-built for heavy-duty applications where compact form and straightforward maintenance matter as much as protection and reliability.

• Model: 800D3PL
• Current rating: 720 A
• Voltage: 690 V
• Function: Reliable isolation with integrated fusible protection for motor loads and distribution circuits
• Design emphasis: Compact footprint paired with a maintainable layout to simplify installation, inspection, and fuse replacement
• Ideal applications: Motor disconnects, panelboards, and branch circuit protection in both industrial and commercial settings

Why this ABB switch stands out

Built for durability in harsh environments, the 800D3PL combines robust construction with practical maintainability. Its compact design fits tighter enclosures and switchgear layouts, while the clear access to fuses and connections minimizes downtime during maintenance or replacement. This means quicker service windows and improved overall system reliability in critical operations.

Common use cases

• Motor disconnects on manufacturing lines, pumps, fans, and conveyors
• Protection and isolation for panelboards in centralized control rooms or distributed electrical racks
• Branch circuit protection where space is at a premium but dependable overcurrent protection is essential

Practical guidance for installation and maintenance

• Confirm the service voltage and current align with the 690 V / 720 A specifications to ensure safe, reliable operation.
• Plan fuse replacement strategies around the maintainable design—keep spare fuses accessible and schedule periodic inspections to verify clean contacts and enclosure integrity.
• Use the switch as part of a comprehensive protection scheme that includes proper wiring practices, secure terminations, and adherence to applicable safety standards.
• When integrating into panelboards or control assemblies, account for clear labeling and easy access to the switch for rapid isolation during fault conditions.
